CheckSignalInEnvelope¶

ID: Check/CheckSignalInEnvelope

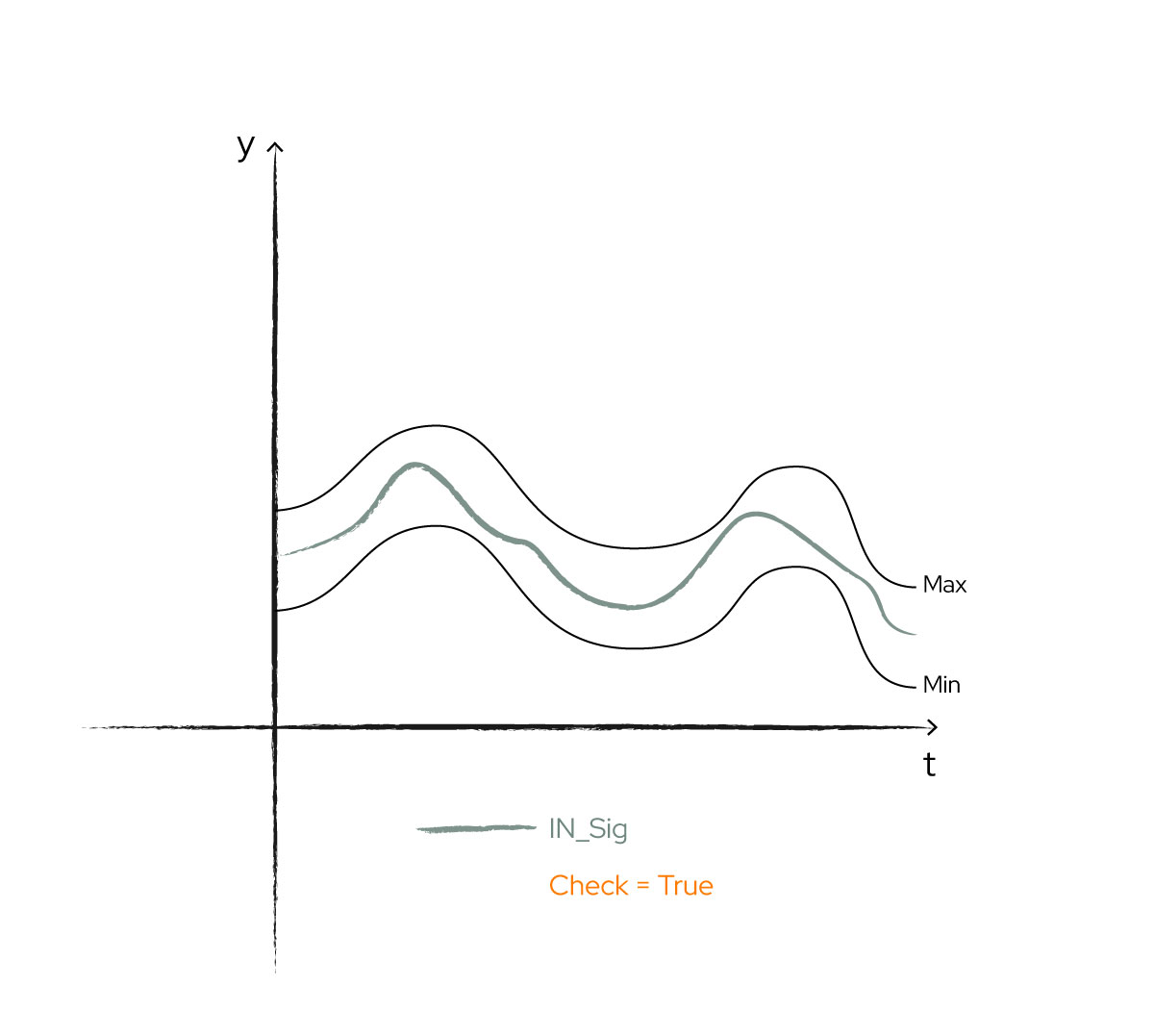

Checks that the values of the input signal ‘signalToCheck’ lie between the values of the input signals ‘min’ and ‘max’.

Note: If this is the case the output signal is 0. Otherwise the corresponding deviation is written to the output signal ‘deviation’.

Signals¶

signalToCheck¶

The signal to check.

• Direction: IN

• Optional: False

max¶

The signal for the upper bound.

• Direction: IN

• Optional: False

min¶

The signal for the lower bound.

• Direction: IN

• Optional: False

deviation¶

The output signal with the calculated deviation of the envelope check.

• Direction: OUT

• Optional: False

Parameters¶

startTime¶

The check starts at timestamp ‘startTime’.

• Direction: IN

tolerance¶

A positive value taken into account when comparing ‘signalToCheck’ with ‘min’ and ‘max’.

• Direction: IN
