CalculateVariance

ID: Calculate/Statistics/CalculateVariance

Calculates the sample variance of the input signal.

Note: This calculation only considers the sampled values of the signal, not its temporal resolution!

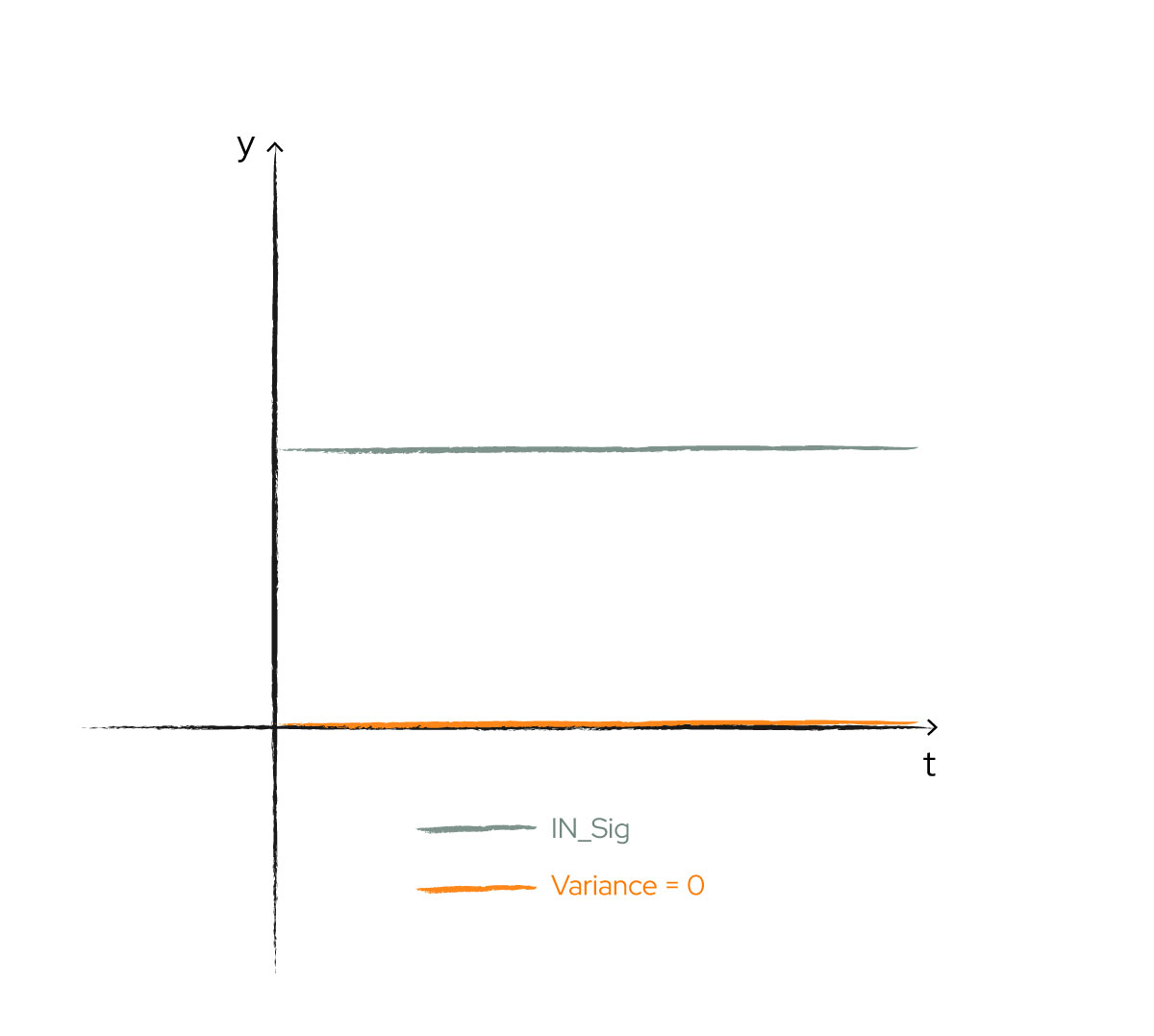

../../../_images/CalculateVariance-01.jpg

Signals

Signal

The signal for which the variance will be calculated.

  • Direction: IN

  • Optional: False

Variance

The calculated variance signal.

  • Direction: OUT

  • Optional: True

Parameters

variance

Returns the calculated variance value. In triggered mode, this value applies to the last trigger range.

  • Direction: OUT
