CalculatePwmDutyCycle¶

ID: Calculate/PwmSignal/CalculatePwmDutyCycle

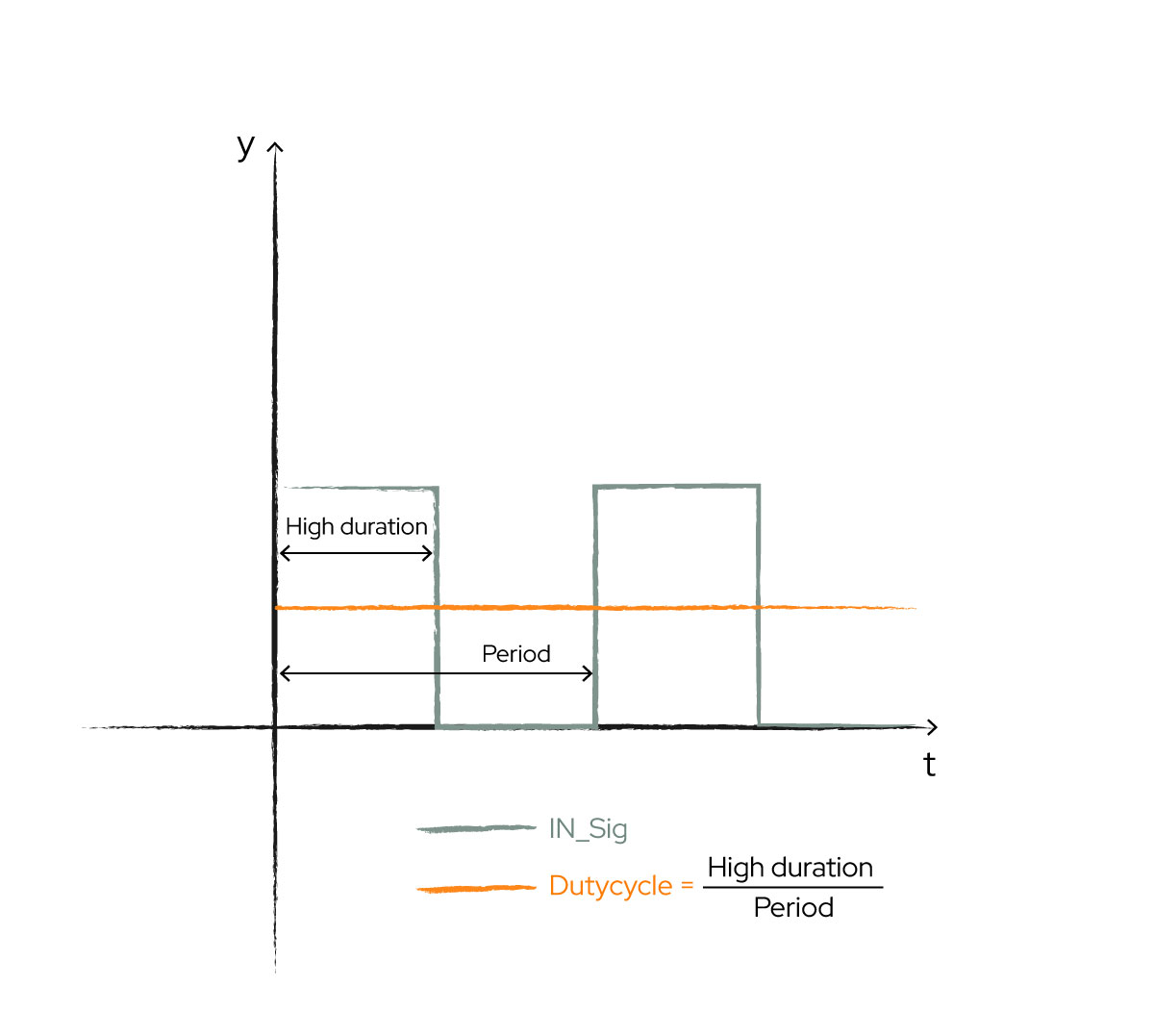

Calculates the duty cycle and period out of a PWM signal.

Note: The definition of the PWM signals is based on the STI standard of the ASAM group.

Signals¶

PwmSignal¶

The PWM signal which should be examined.

• Direction: IN

• Optional: False

DutyCycle¶

The duty cycle of the given PWM signal.

• Direction: OUT

• Optional: False

Period¶

The period of the given PWM signal.

• Direction: OUT

• Optional: False

Parameters¶

offset¶

Offset of the given PWM signal.

None .. offset = 0.0 [Default]

Valid types: int, long, float

• Direction: IN

amplitude¶

Amplitude of the given PWM signal.

None .. amplitude = 1.0 [Default]

Valid types: int, long, float

Amplitude must be positive.

• Direction: IN
