CalculatePwmStateTime¶

ID: Calculate/PwmSignal/CalculatePwmStateTime

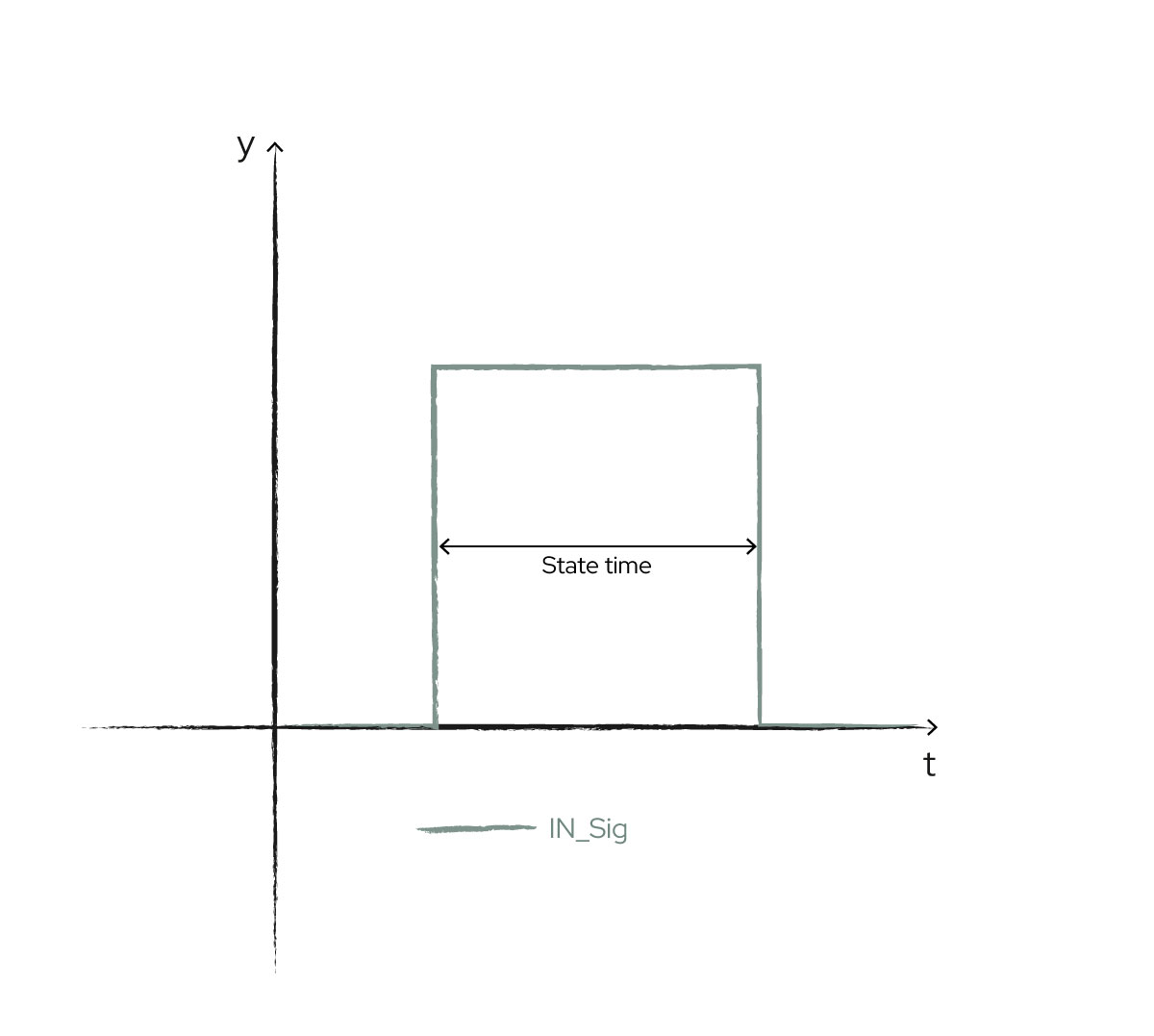

Calculates the state time of a PWM signal. Low state: signal < offset + reference level * amplitude. High state: signal > offset + reference level * amplitude

Signals¶

PwmSignal¶

The PWM signal that should be analyzed.

• Direction: IN

• Optional: False

StateTime¶

The state time of the given PWM signal.

• Direction: OUT

• Optional: False

Parameters¶

amplitude¶

Amplitude (>0) of the given PWM signal.

None .. amplitude = 1.0 [Default]

• Direction: IN

• Type: FLOAT

offset¶

Offset of the value of the given PWM signal.

None .. offset = 0.0 [Default]

• Direction: IN

• Type: FLOAT

referenceLevel¶

Reference level at which the state time calculation starts and stops. The range of definition is from 0 to 1 (without the values 0 and 1).

For low state: None .. referenceLevel = 0.1 [Default]

For high state: None .. referenceLevel = 0.9 [Default]

• Direction: IN

• Type: FLOAT

stateLowOrHigh¶

Define which state of the PWM signal should be analyzed.

0 .. analyze low state 1 .. analyze high state

• Direction: IN

• Type: INTEGER
