CalculatePwmPeakToPeakValue

ID: Calculate/PwmSignal/CalculatePwmPeakToPeakValue

Calculates the peak to peak value of a PWM signal based on a reference level.

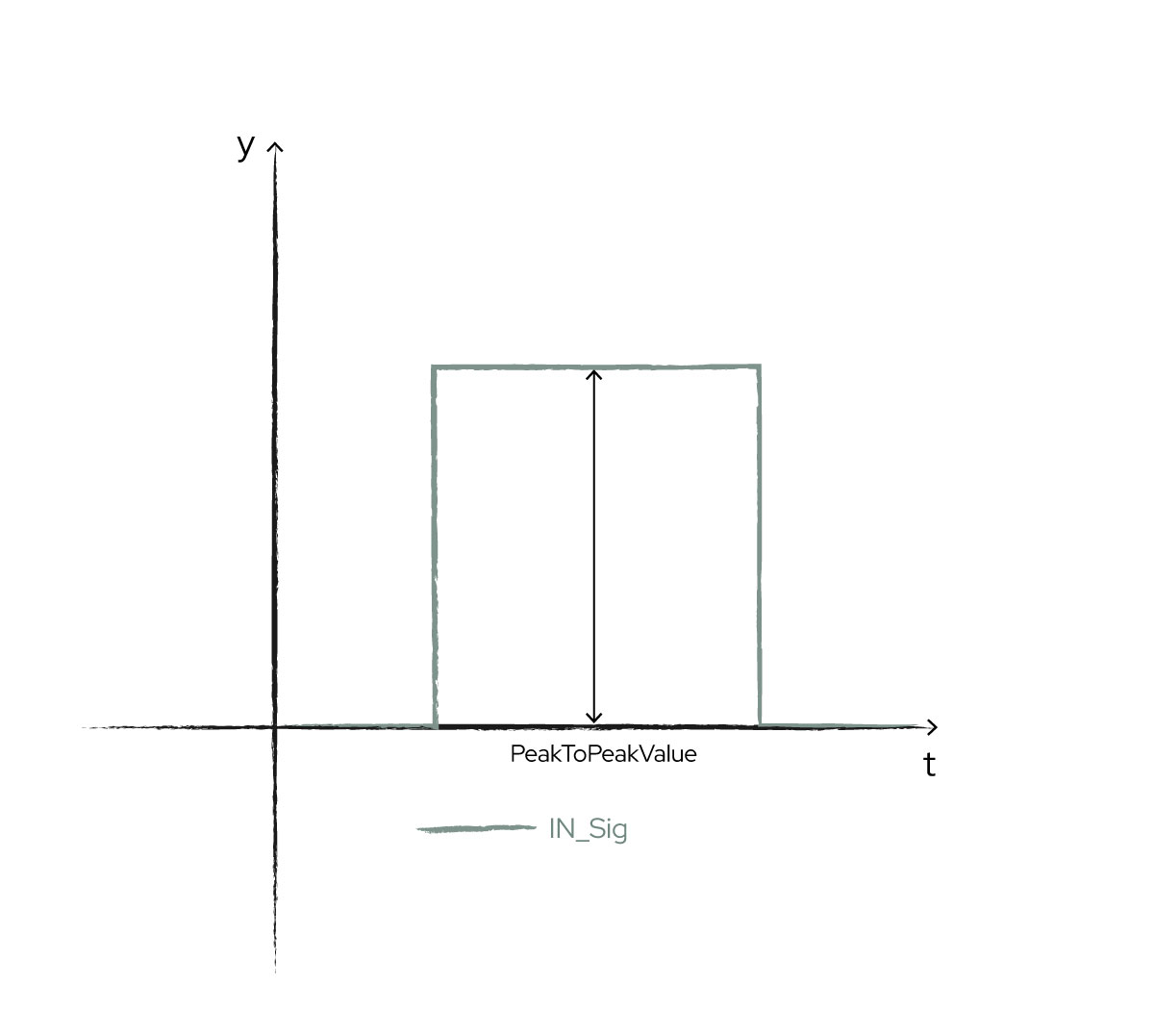

../../../_images/CalculatePwmPeakToPeakValue-01.jpg

Signals

PeakToPeakValue

The peak to peak value of the given PWM signal.

  • Direction: OUT

  • Optional: False

PwmSignal

The PWM signal that should be analyzed.

  • Direction: IN

  • Optional: False

Parameters

referenceLevel

Reference level at which the PWM signal switches from one state to the other state (default is 0).

  • Direction: IN

  • Type: FLOAT
