Evaluation of analysis results¶

The principal handling of ecu.test reports is described in Section test report.

The report of a trace analysis directly reflects the underlying structure. This can be seen in the supplied package sample CheckSignalInEnvelope explained as follows:

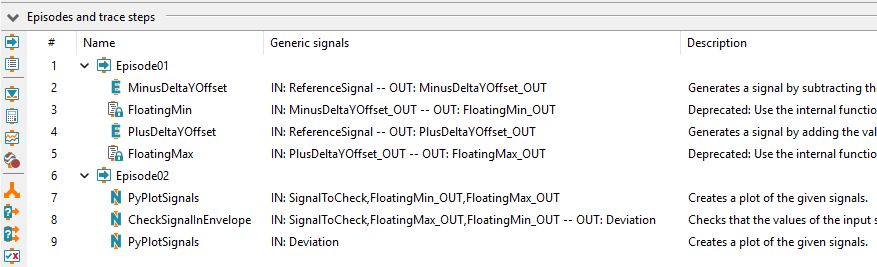

../../_images/Report_Traceanalyse.png — Package CheckSignalInEnvelope¶

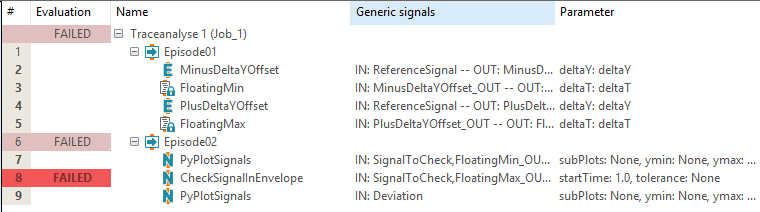

../../_images/Report_Report.png — Report of the the package CheckSignalInEnvelope¶

Available details can be expanded either by a click on the little “plus” symbol (left) or a double click on a given line.

../../_images/Report_Details.png — Detailed view of a trace step evaluated as FAILED¶

The details include both more information about the result of the analysis and the particulars of the trace step parameterization as well as the trace step template on which it is based.
