Execution tab¶

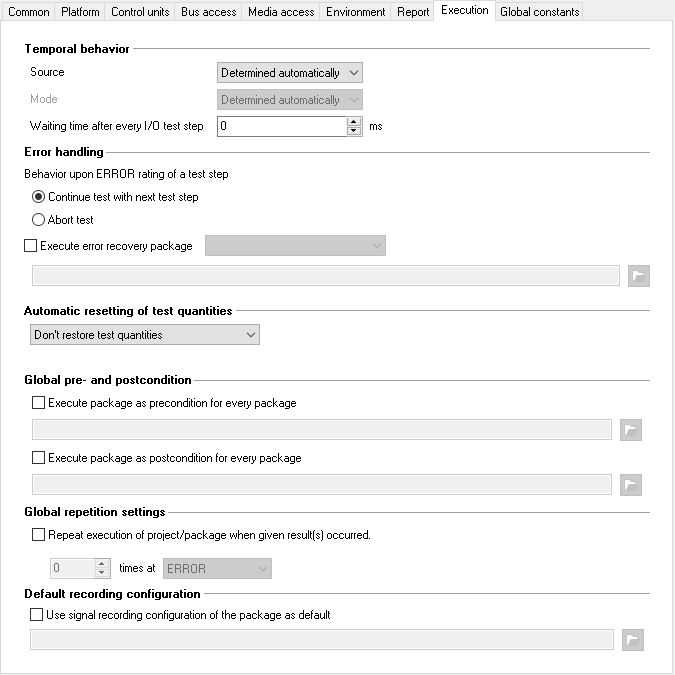

The tab Execution allows influencing the behavior of ecu.test during execution.

Temporal behaviour¶

The section Temporal behaviour defines the source used to get time stamps for the test execution. Therefore it can be chosen between realtime and a port.

If a port is chosen, it is additionally possible to select whether the simulation should be stepped or if it should run continuously.

If stepped, the simulation only proceeds if the test case is waiting explicitly or a suitable test step is executed (Wait, time options or diagnostics test step). If this is not the case, the simulation is paused. This makes multiple accesses to values at exactly the same point in time possible.

In continuous mode, the simulation is always running. ecu.test receives time stamps from the simulating tool to synchronize the test case to them.

Info

If left on the default value, the configuration automatically detects a port capable of providing time stamps, and selects the preferred mode of this port. To find out about the preferred mode, take a look at the documentation of the port.

By means of Waiting time after every I/O test step it is possible to include artificial time delays in a test run.

Error handling¶

The section Error handling configures the behaviour in case of an error during execution. The topmost selection determines whether the test may continue after an ERROR rated test step, or whether the package execution gets aborted. If the package is being executed as part of a project, execution continues with the following project step.

Immediately below, a package can be specified for execution in case of an abort, or at the end of a faulty test case. After checking the option, a choice box allows selecting whether the package shall be executed only upon abort, also in case of ERROR, or even in case of FAILED. In the text entry below, you can type or paste the full path of the package file to be executed, or use the adjacent button to choose the package in the file system.

An abort (which leads to execution of the error recovery package, if configured) is defined as any abort of the test case execution, no matter if e.g. through the abovementioned option Abort test, by clicking the button Abort of the Execution dialog, by an abort test step, by a block with checked option Conditional test abort or through an API call.

For executing the error recovery package in case of ERROR or FAILED ratings, test step ratings changed into a better rating by means of an assertion test step are not taken into consideration.

We have a test case abort whenever the option Abort test was chosen among the radio buttons above, or the abort was carried out manually during the execution of a test case.

Automatic resetting of test quantities¶

In the section Automatic resetting of test quantities ecu.test can be configured to reset all written quantities to the original values, after every test carried out, possibly after confirmation only.

If the mode “Only reset test quantities from chosen ports” is used, the ports to be reset can be selected from a list. This list only contains ports that are referenced within the test configuration and which support the resetting of test quantities (Model-, Bus-, Environment-, and Application-ports).

Global pre- and postcondition¶

The section Global pre- and postcondition allows to deposit packages that are executed before (precondition) or after (postcondition) an executed package. The package path can be relative to the packages directory or absolute.

If there already exists a local pre- or postcondition, the global precondition will be inserted as first test step in the local precondition and the global postcondition will be inserted as the last test step in the local postcondition. Otherwise the global pre- and postcondition will be automatically added and marked like this in the report. The global pre- and postcondition will not be shown in the test case creation view. In the report they can be easily recognized by the line number PRE or POST and on the entry in the comment field.

Note: It is not possible to start recording in the global precondition and stop in a global postcondition.

Global retry settings¶

Using the setting in this section, it is possible to set global retry settings valid in all executed projects if those do not overwrite them locally.

Default recording configuration¶

Here, a package with a Default recording configuration can be specified.
