Standard trace step templates¶

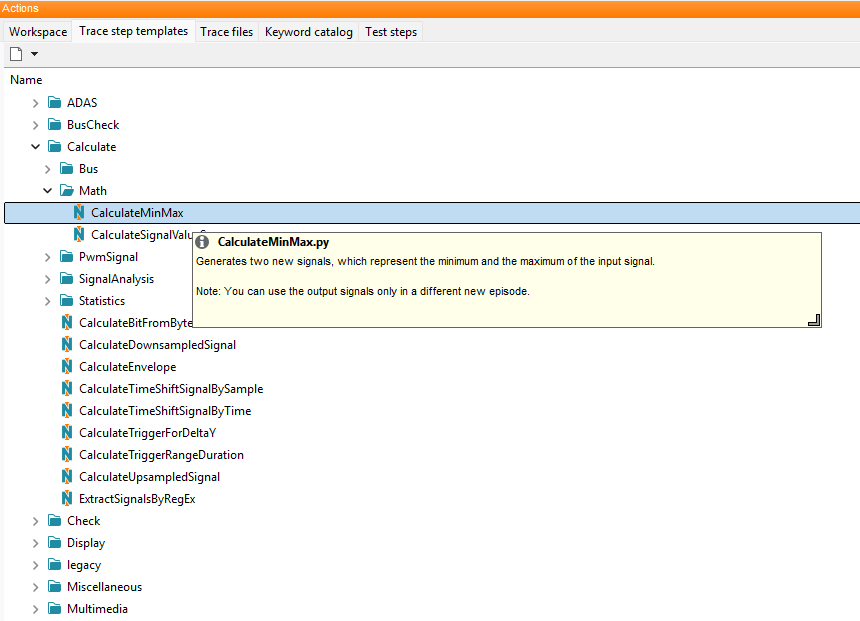

The tab Trace step templates contains, in addition to included examples of trace step templates, so-called standard trace step templates, which can be accessed via an implicit library workspace named StandardTraceStepTemplates. They can be used and parametrized directly, e.g. for qualitative and statistical evaluations or for the calculation of reference signals.

A description of those standard trace step templates is available as a tool tip directly in the trace step template explorer or in the dialog trace step configuration in conjunction with trace step integration.

Unlike the trace step templates at Templates, standard trace step templates cannot be edited and thus, their analysis instructions cannot be changed.

An overview including a description of all standard trace step templates is contained in the installation directory of ecu.test at index.html.
