Test bench configuration editor¶

In the test bench configuration software to be controlled is selected and configured. Also specific ports are created for use in test configuration. Explanations concerning the different settings can be found in section Tools.

Links to the software can be made by local or remote connection via Tool Server.

Tool interfaces¶

Tool interfaces (ToolLibs) provide the layer between generic test steps in ecu.test and software or hardware interfaces used to access the SUT and the test environment. This layer is the basis for running generic test cases in different test environments with hardware and software from different manufacturers.

Tool interfaces can be used locally when the required components are installed on the same computer. Alternatively, a client-server architecture can be used: in this case, ecu.test accesses tool interfaces on other computers via Tool Server.

To execute test cases, the tool interfaces of the peripheral software must be configured. This is mainly done in the test bench configuration. For advanced use cases, direct configuration in ToolLibs.ini may also be required.

Further topics:

• Tools

• Settings in the ToolLibs.ini

Hosts and Tools¶

On the left side is the area for configuring tool hosts, tools and ports. Initially it contains a local tool host and a greyed out list of available interfaces.

Right-click on an empty area and select Create new tool host, or use the symbol in the toolbar, the dialog for creating a new tool host opens. After selecting whether it is the local computer or a remote PC, the new tool host is created and its available interfaces are displayed. A base path can be specified for the tool host. For some tools, this can be used for path settings during configuration. Therefore it is sufficient for the tool configuration to specify relative paths. For local tool hosts, by default the current workspace is specified by the placeholder <workspace>.

Gray entries mean that the interface is there, but is not set up at present.

For an interface to be used, it has to be activated. That is done by selecting Add tool in the context menu of the desired entry. Alternatively, with most tools (those providing ports) it is possible to select New port, which activates the tool and creates a port.

Ports¶

The option New port on each tool can also be used afterwards to create (additional) ports.

A port contains concrete settings so that the interface can later be used in ecu.test. When a port is added, the kind of port to be established can be selected depending on the interface (e.g. bus or application access at ETAS: INCA) and a name can be attributed (port ID). Automatic assigns a default name.

Start mode¶

A start mode can be specified for each tool and each port in the column “Start”. The behavior differs between tools and ports.

Tool start modes

Tools are usually started during configuration startup.

If necessary (default value)

The tool is started at configuration startup if at least one port assigned to the tool is referenced in the test configuration to be started.

Always

The tool is always started at the start of configuration, regardless of whether its ports are used in the test configuration.

Never

The tool is not started when the configuration starts, regardless of whether its ports are used in the test configuration.

Port start modes

Ports are usually started before a test case is executed.

If necessary (default value)

The port is automatically started before the start of the test case if it is used in the test case to be executed.

Always

The port is always started before the start of the test case, regardless of whether it is used in the test case to be executed.

Never

The port is not started before the start of the test case, regardless of whether it is used in the test case to be executed.

Alias¶

In the column “Alias”, an alias name can be defined for each tool. This alias will be used in Configurations window and Configuration change. However, the test report will still show the tool name. Aliases must be unique within the test bench configuration. If an already existing alias name is entered, the input field turns red. The input of an alias name can be aborted with the escape key. In this case, the previously assigned alias will be used. If the input field is left blank, a default alias will be assigned. The default alias is composed of the tool name and a number.

Priority¶

In the column “Prio”, each tool can be assigned a start resp. stop priority. This determines the order in which the tools are set up or shut down when the configuration is started or stopped via the configuration manager. Tools with higher priority (= lower number) are started before the tools with lower priority. When stopping, the order is reversed: Tools with lower priority (= higher number) are stopped before those with higher priority. For tools with the same priority, the order is not defined. The prio value 0 marks the highest priority.

Apart from the configuration manager, the priority is also evaluated by the project step Configuration change in certain cases.

Properties¶

Different settings can be made depending on the interface. A distinction is always made between interface-specific and port-specific settings. The former appear when the interface is chosen, the latter at the selection of the port. The parameter Timeout for tool call is provided generically by all tools and determines the maximal waiting time for tool calls.

Referencing settings specified in the test configuration¶

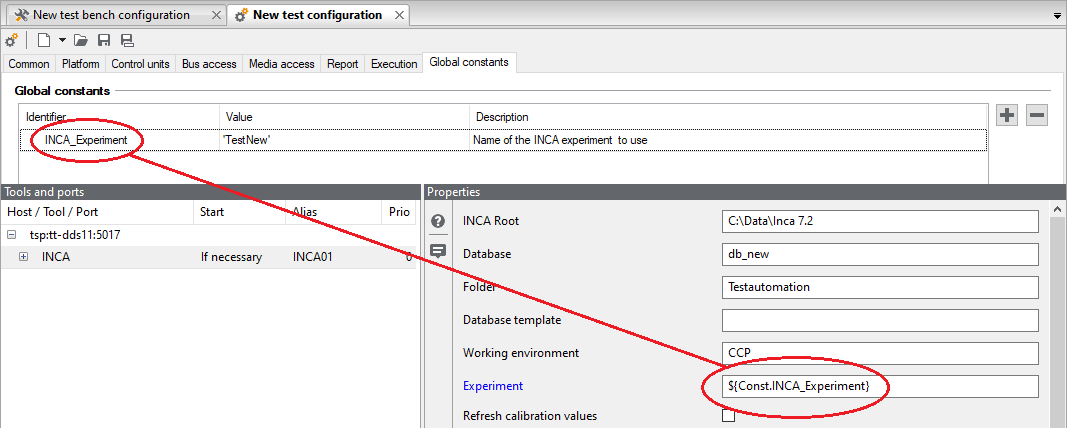

It may be necessary, in part, to specify settings in accordance with the test configuration used, e.g. the name of the INCA database. In order to avoid setting up a specific test bench configuration for each variant, the settings can also be specified by way of ${Const.Konstantenname}.

The name of the constant is replaced during start by an entry of the same name in global constants (Global constants tab). If such an entry does not exist, the port or tool start is disrupted as a fault. The referenced constants must be of the “string” type.

Using the test bench configuration¶

When all ports are set up and the corresponding settings are made, the test bench configuration file can be saved and activated according to Using configurations.
